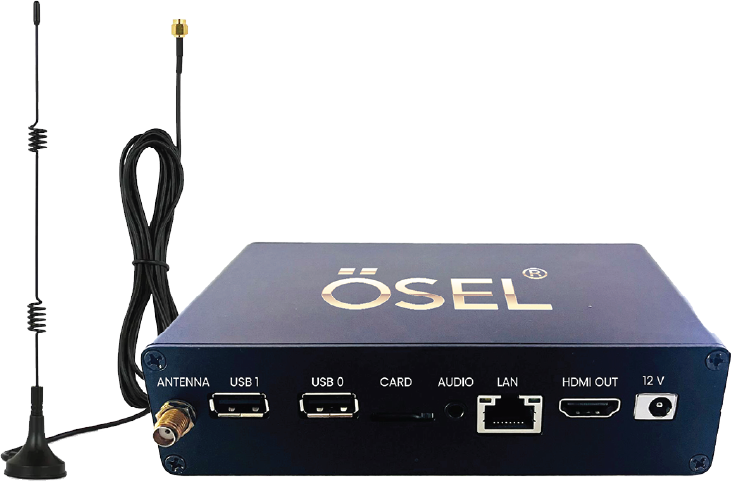

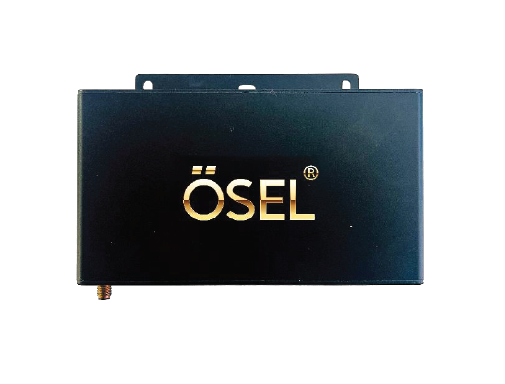

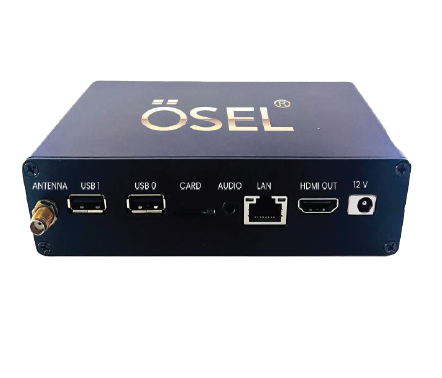

OSEL Player
OSEL G30
Technical Specification
| Feature | Media Player |
|---|---|
| CPU | Custom SOC with Quad-core, 1.2 GHz |
| GPU | Advanced GPU (supports Mali-400 MP2) |
| Storage | MicroSD, eMMC 16 GB, TF card up to 256 GB |
| Networking | Gigabit Ethernet, Wi-Fi (802.11 b/g/n) |
| Display Output |
HDMI (up to 4k output), LVDS (single/dual, 6/8-bit) |
| Audio | Analog & SPDIF, 3.5mm audio, IR, MIC in |
| USB Ports | 6 (2 USB-A, 4 pin header(5V/1A power)) |
| Serial / GPIO | 8 GPIO bi-directional, 4 UART GPIO |
| Operating Temp | -20°C to 70°C |
OSEL G50
Hardware Specification
| CPU | Quad-core, frequency upto up to 1.8GHz |
| GPU | Mali-G52 Graphics Processing Unit providing efficient image rendering and video performance. |
| Memory | 2GB DDR3 RAM for standard multitasking performance. |
| Built-in storage capacity | Integrated 16 GB eMMC flash storage for system and media data. |
| Network Interface |
Ethernet: RJ45 port, 10/100 Mbps Wi-Fi: IEEE 802.11b/g/n compliant. Bluetooth: Bluetooth 4.2 compliant." |
| Screen Rotation | Supports rotation at 0°, 90°, 180°, and 270 |
| Display interface | Supports LVDS interface (single/dual channel, 6-bit/8-bit) and 1x HDMI 4K output |
| Audio | Standard stereo line-out with left and right channel support |
| RTC | Integrated real-time clock (RTC) functionality |
| USB | 1 × USB 3.0 HOST port, 1 × USB 2.0 OTG port |
| Power | Input: DC 12V, 1.5A |
| Storage Humidity | 10% to 90% Relative Humidity (non-condensing) |
| Storage Temperature | -40°C to +70°C |
| Operating Temperature | -20°C to +70°C |
Software Specifications
| Operating System | Android 11 |
| Audio | Supports MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP, and other standard audio formats |
| Video | Supports AVI, RM, RMVB, MKV, WMV, MOV, MP4, DAT, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, and more |
| Image | Supports JPG, BMP, PNG, and other common image formats |
OSEL G51
Hardware Specification
| CPU | Quad-core, frequency upto 1.8GHz |
| GPU | Mail-T764 GPU MP4 Quad-core Graphics Processing Unit providing efficient image rendering and video performance. |
| Memory | 2GB DDR3 RAM for standard multitasking performance. |
| Built-in storage capacity | Integrated 8 GB eMMC flash storage for system and media data. |
| Network Interface |
Ethernet: RJ45 port, 10/100 Mbps Wi-Fi: IEEE 802.11b/g/n compliant. Bluetooth: Bluetooth 4.2 compliant. |
| Screen Rotation | Supports rotation at 0°, 90°, 180°, and 270 |
| Display interface | Supports LVDS interface (single/dual channel, 6-bit/8-bit) and 1x HDMI 4K output |
| Audio | Standard stereo line-out with left and right channel support |
| RTC | Integrated real-time clock (RTC) functionality |
| USB | 1 × USB 2.0 HOST port, 1 × USB 2.0 OTG port |
| Power | Input: DC 12V, 1.5A |
| Storage Humidity | 0% to 90% Relative Humidity (non-condensing) |
| Storage Temperature | -40°C to +70°C |
| Operating Temperature | -20°C to +70°C |
Software Specifications
| Operating System | Android 7.1.1 |
| Audio | Supports MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP, and other standard audio formats |
| Video | Supports AVI, RM, RMVB, MKV, WMV, MOV, MP4, DAT, PMP, MPEG, MPG, FLV, ASF, TS, TP, 3GP, and more |
| Image | Supports JPG, BMP, PNG, and other common image formats |
